📡 Sentinel-2 for Crop Yield Estimation: A Systematic Review

Mohammadreza Narimani, Alireza Pourreza, Ali Moghimi, and Parastoo Farajpoor

Smart Agricultural Technology · Volume 14 · Article 102405 · 2026

Digital Agriculture Laboratory · Department of Biological and Agricultural Engineering · University of California, Davis

Read the open-access paper View on arXiv

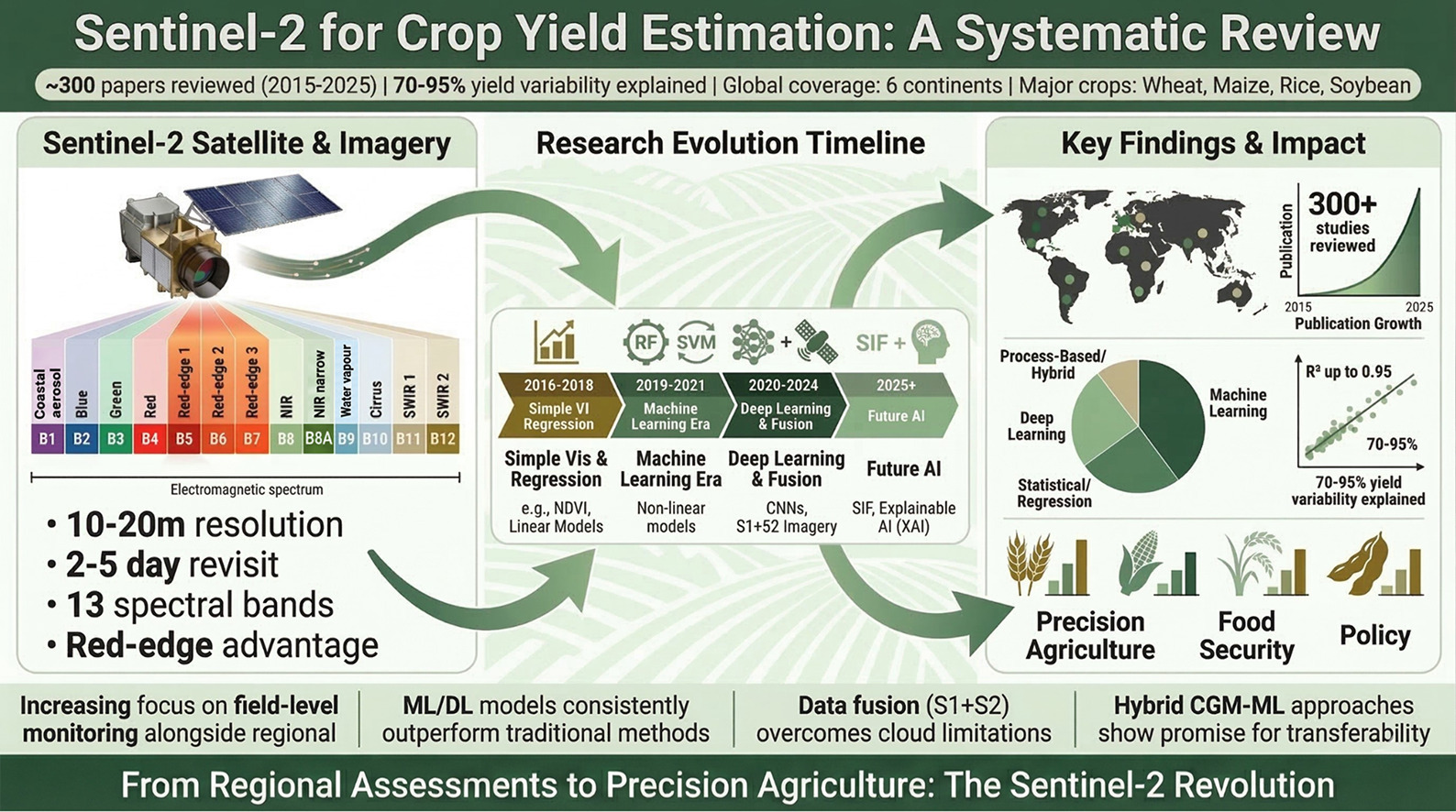

Graphical Abstract

At a glance: Sentinel-2’s field-scale optical advantage, the shift from vegetation-index regressions to machine learning, deep learning, and multi-sensor fusion, and the review’s global findings on performance and impact.

Why This Review Matters

Accurate, timely crop yield information underpins food security, agricultural policy, and farm management. Coarse sensors such as MODIS can monitor continents but blur small fields. Landsat improves spatial detail, yet its revisit and cloud sensitivity often miss key phenology. Sentinel-2 changed that balance: free 10–20 m multispectral imagery, frequent revisits, and red-edge bands that stay informative in dense canopies.

This open-access systematic review by Mohammadreza Narimani and colleagues synthesizes peer-reviewed Sentinel-2 yield studies from 2015 onward. Rather than claiming the first Sentinel-2 agriculture review, it delivers a yield-centered comparison of modeling paradigms, input data, validation practice, crop patterns, and operational bottlenecks.

Core story: Sentinel-2 moved yield estimation from regional summaries toward field and within-field decision support—through vegetation-index machine learning, crop-growth-model data assimilation, and optical–SAR fusion.

A Rapidly Expanding Global Literature

Publication activity has grown sharply since the mid-2010s, with particularly strong contributions from Asia, Europe, and the Americas. Wheat, maize, rice, and soybean dominate the literature, while specialty and horticultural crops remain comparatively underrepresented—an opportunity for future field-scale work.

2015–presentSentinel-2 era coverage

382Initial Web of Science hits

3Core modeling paradigms

10–20 mSentinel-2 spatial detail

~5 daysTypical revisit with 2A/2B

CC BYOpen-access license

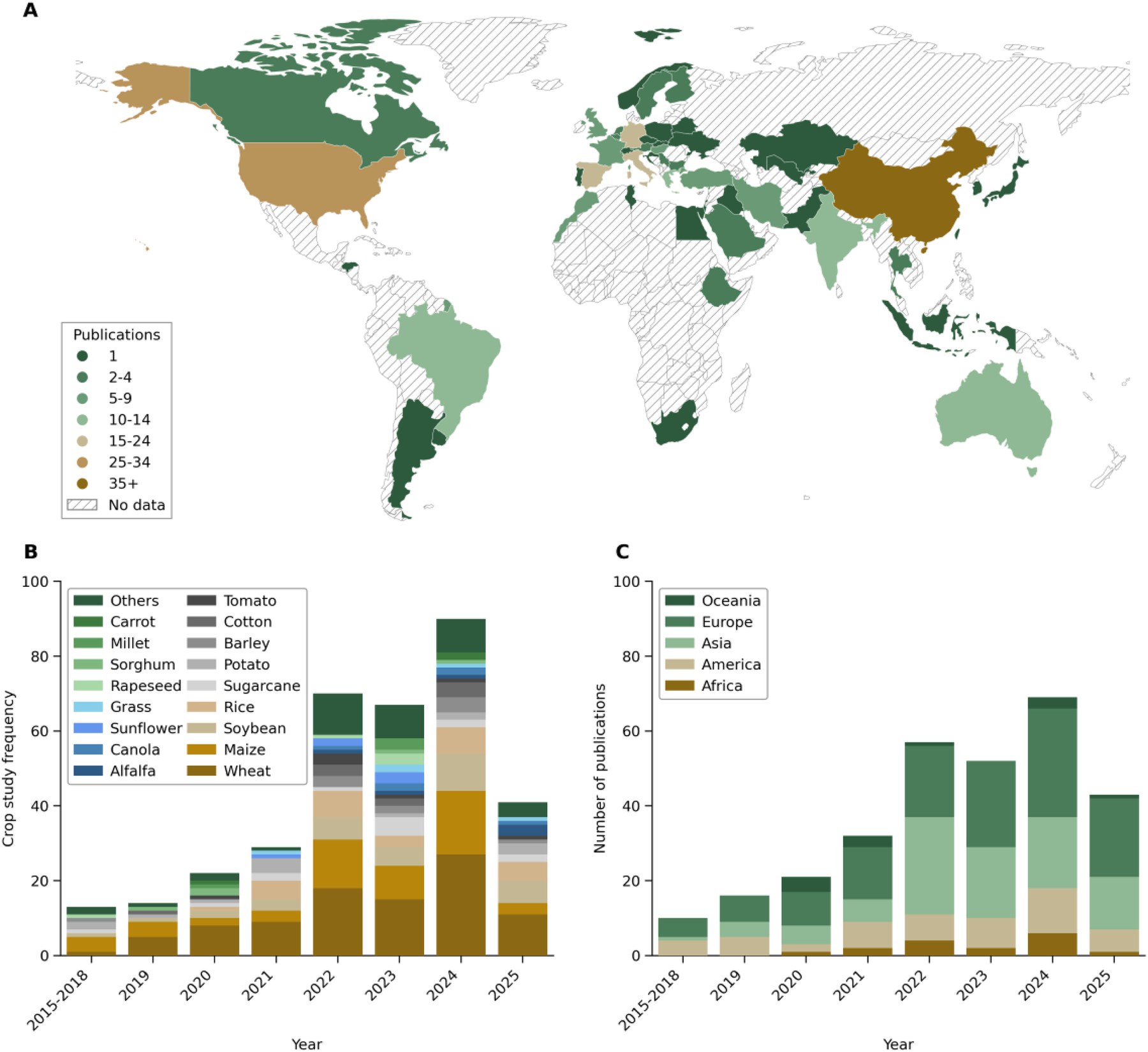

Global map and charts showing geographic distribution, crop study frequency, and continental growth of Sentinel-2 crop yield estimation publications reviewed by Mohammadreza Narimani — Figure 1. Global trends: country coverage, crop focus over time, and continental publication growth.

Why Sentinel-2 Is a Sweet Spot

Compared with Landsat 9 (≈30 m, ≈16-day revisit) and PlanetScope (≈3 m, near-daily but fewer spectral bands), Sentinel-2 sits in a practical middle ground for yield mapping: sharp enough for many field boundaries, rich enough for chlorophyll-sensitive red-edge indices such as NDRE and MTCI, and frequent enough to track canopy development through the season.

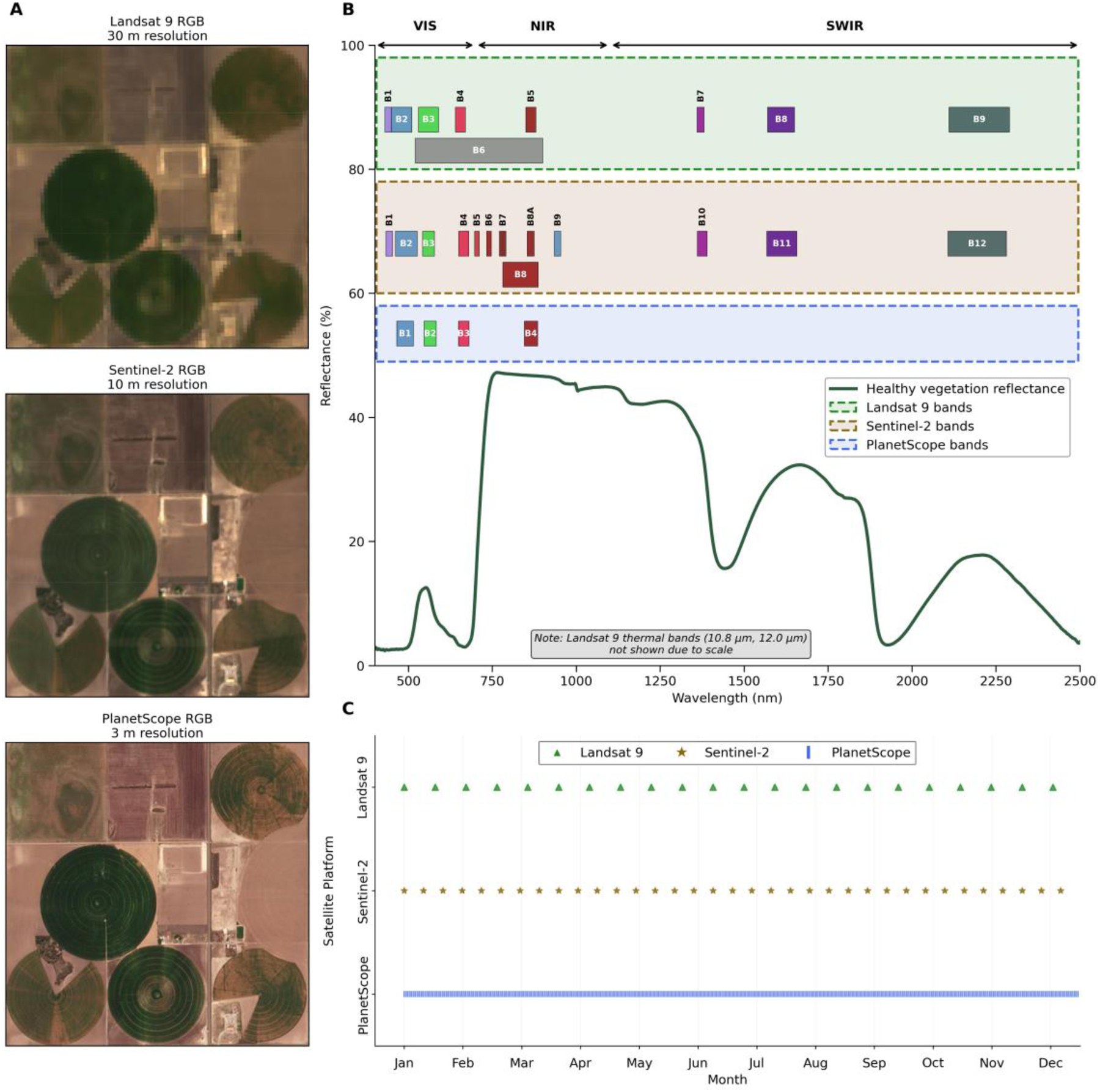

Comparison of Landsat 9, Sentinel-2, and PlanetScope spatial resolution, spectral bands, and revisit frequency for crop monitoring — Figure 2. Spatial, spectral, and temporal comparison of Landsat 9, Sentinel-2, and PlanetScope.

Three Modeling Paradigms

1. Empirical ML / Deep Learning

Vegetation indices and spectral time series feed Random Forest, SVM, gradient boosting, CNNs, LSTMs, and related models that capture nonlinear spectral–yield relationships.

2. Crop-Growth Data Assimilation

Sentinel-2 biophysical variables—especially LAI—constrain process models such as WOFOST, SAFY, APSIM, and CERES-Wheat for physiologically grounded forecasts.

3. Multi-Sensor Fusion

Sentinel-1 SAR fills optical cloud gaps; weather, soil, and topography further explain within-field yield variability when fused with Sentinel-2 features.

Across the reviewed literature, machine learning is the most common family, with Random Forest appearing most frequently, followed by classical regression and a rapidly growing deep-learning share. Process-based assimilation and hybrid/ensemble designs remain smaller but strategically important for transferability and physical consistency.

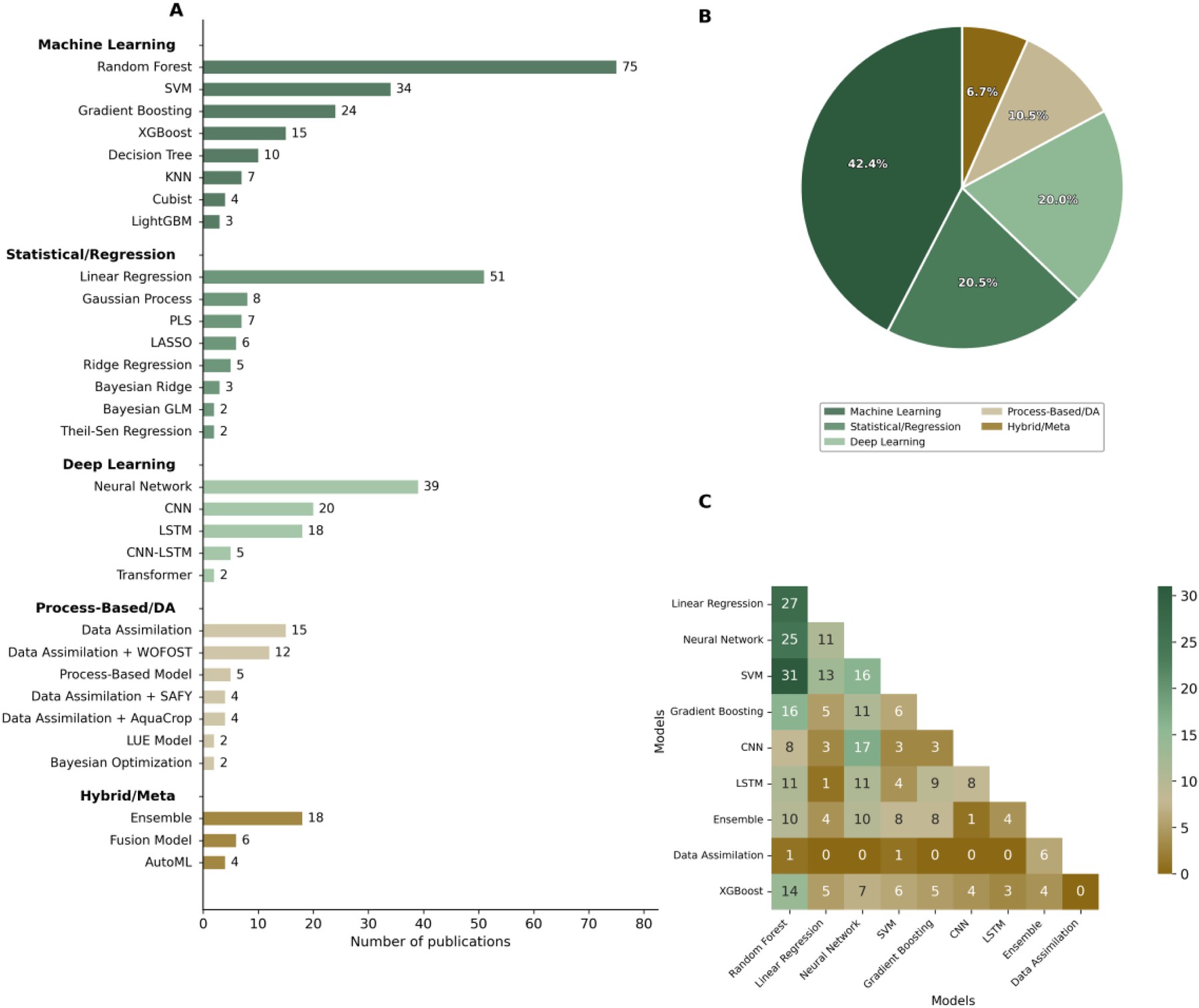

Bar chart, pie chart, and co-occurrence heatmap of modeling approaches used in Sentinel-2 crop yield estimation studies including Random Forest, SVM, neural networks, and data assimilation — Figure 3. Modeling landscape: method frequency, category share, and common head-to-head comparisons.

Challenges and Practical Solutions

Even strong Sentinel-2 frameworks struggle with scarce ground-truth yields, cloud gaps, VI saturation in dense canopies, weak cross-region transfer, high compute cost, and early-season soil background. The review pairs each bottleneck with actionable pathways: harvester GPS yields, Sentinel-1 fusion, red-edge indices, explainable AI (e.g., SHAP), Google Earth Engine / HPC workflows, phenology-aware timing, and higher-resolution optical fusion where needed.

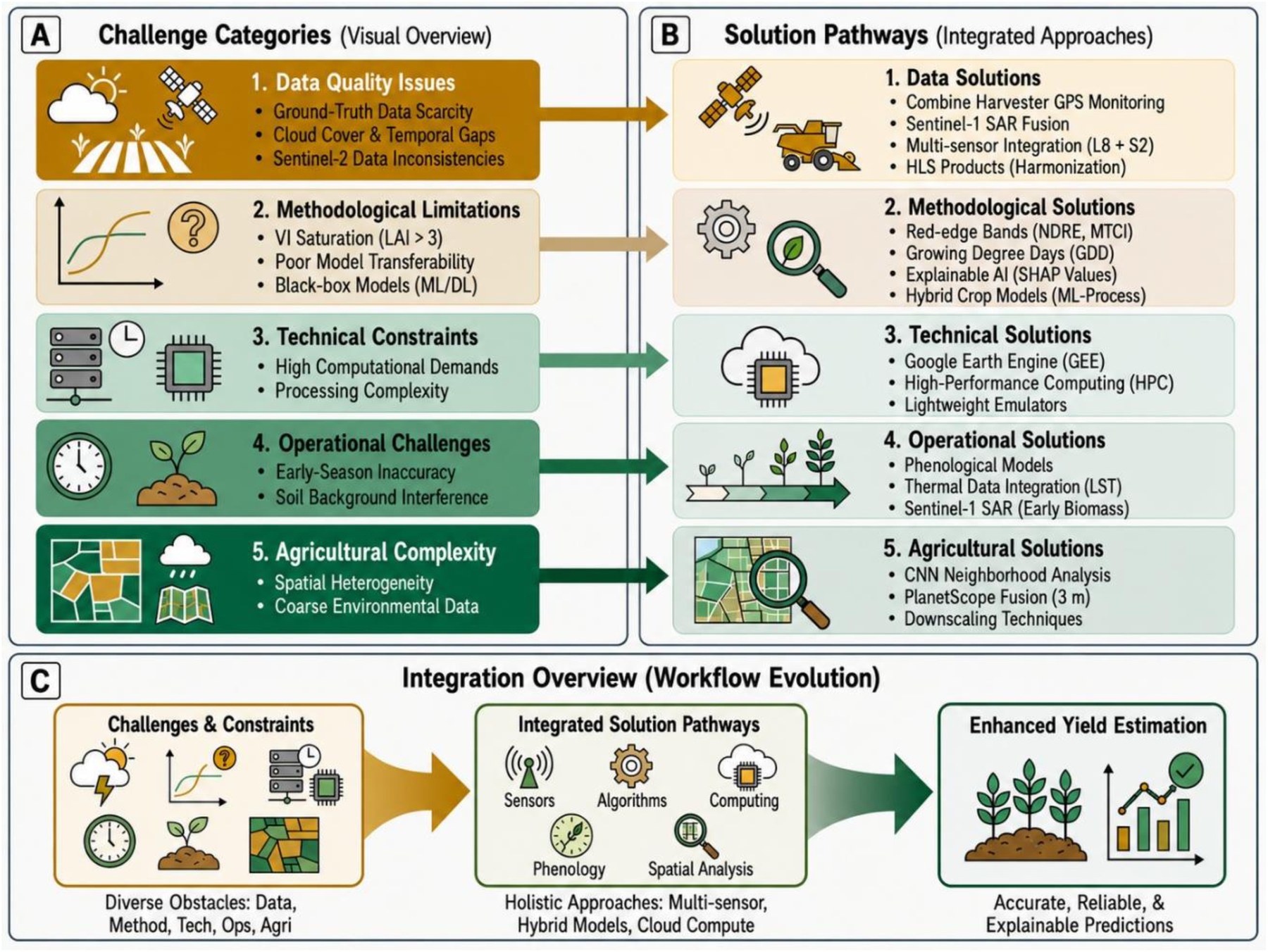

Infographic of challenges and solutions in Sentinel-2 yield estimation covering data quality, methods, compute, operations, and agricultural complexity — Figure 4. Challenge categories mapped to integrated solution pathways for more reliable yield estimation.

From NDVI Regressions to Next-Generation AI

Methodologically, the field has moved from simple vegetation-index regressions toward machine learning, then deep learning and multi-sensor fusion, and now toward knowledge-guided models, foundation-model pre-training, explainable AI, and operational deployment. The trajectory is clear: higher skill is possible, but only when models are paired with better labels, uncertainty reporting, and transferable designs.

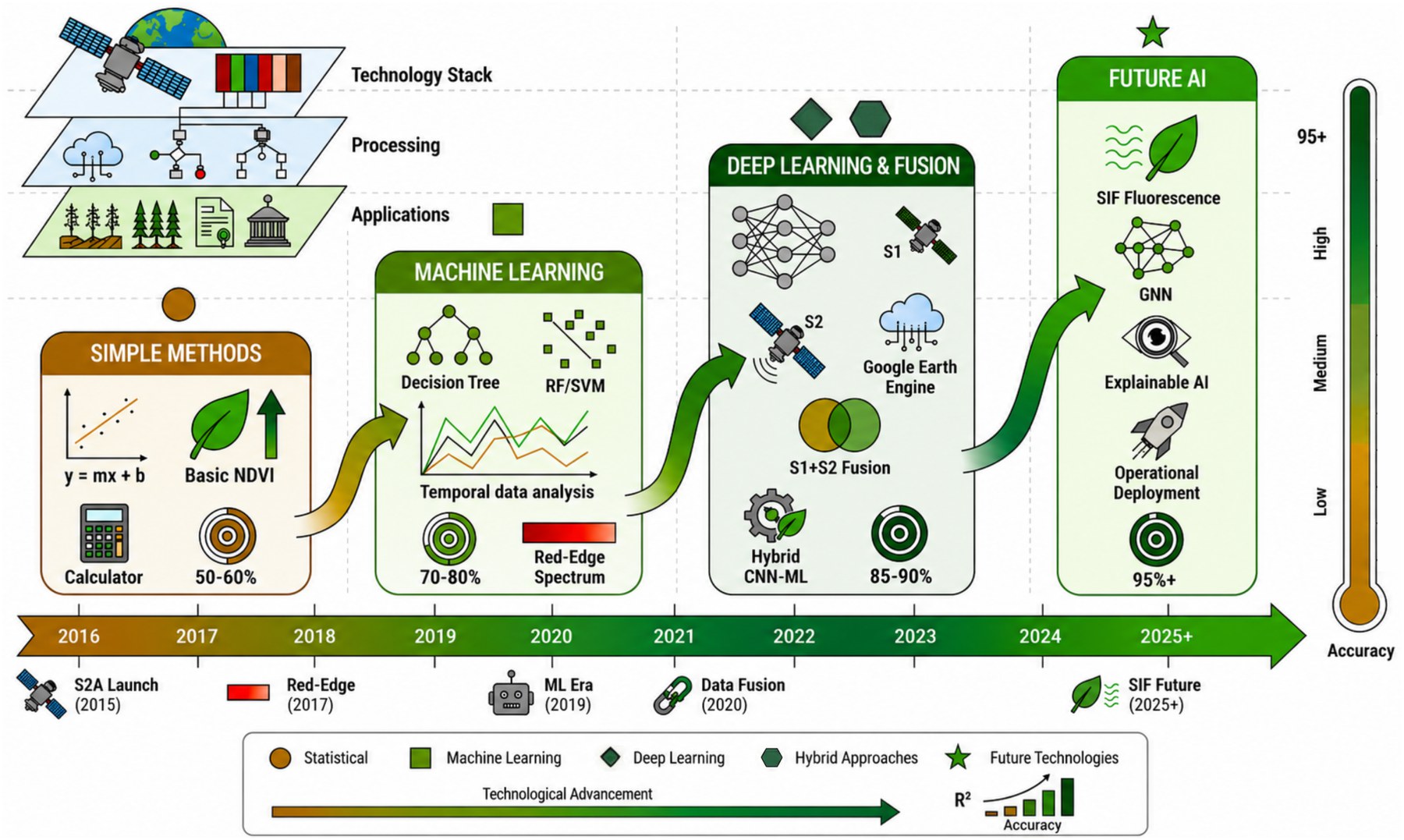

Timeline of satellite-based crop monitoring methods from 2015 simple NDVI models through machine learning and deep learning fusion to future AI for yield estimation — Figure 5. Evolution and outlook: simple methods → ML → deep learning & fusion → future knowledge-guided and foundation-model AI.

Takeaway for practitioners and researchers: Sentinel-2 already supports powerful field-scale yield workflows. The next gains will come less from another incremental model tweak and more from curated multi-year yield datasets, transparent uncertainty, hybrid physical–ML thinking, and robust multi-sensor pipelines.

Paper and Citation

Narimani, M., Pourreza, A., Moghimi, A., & Farajpoor, P. (2026). Sentinel-2 for crop yield estimation: A systematic review. Smart Agricultural Technology, 14, 102405.

DOI: 10.1016/j.atech.2026.102405 · Open access under CC BY 4.0

Read at ScienceDirect / Elsevier Preprint on arXiv
